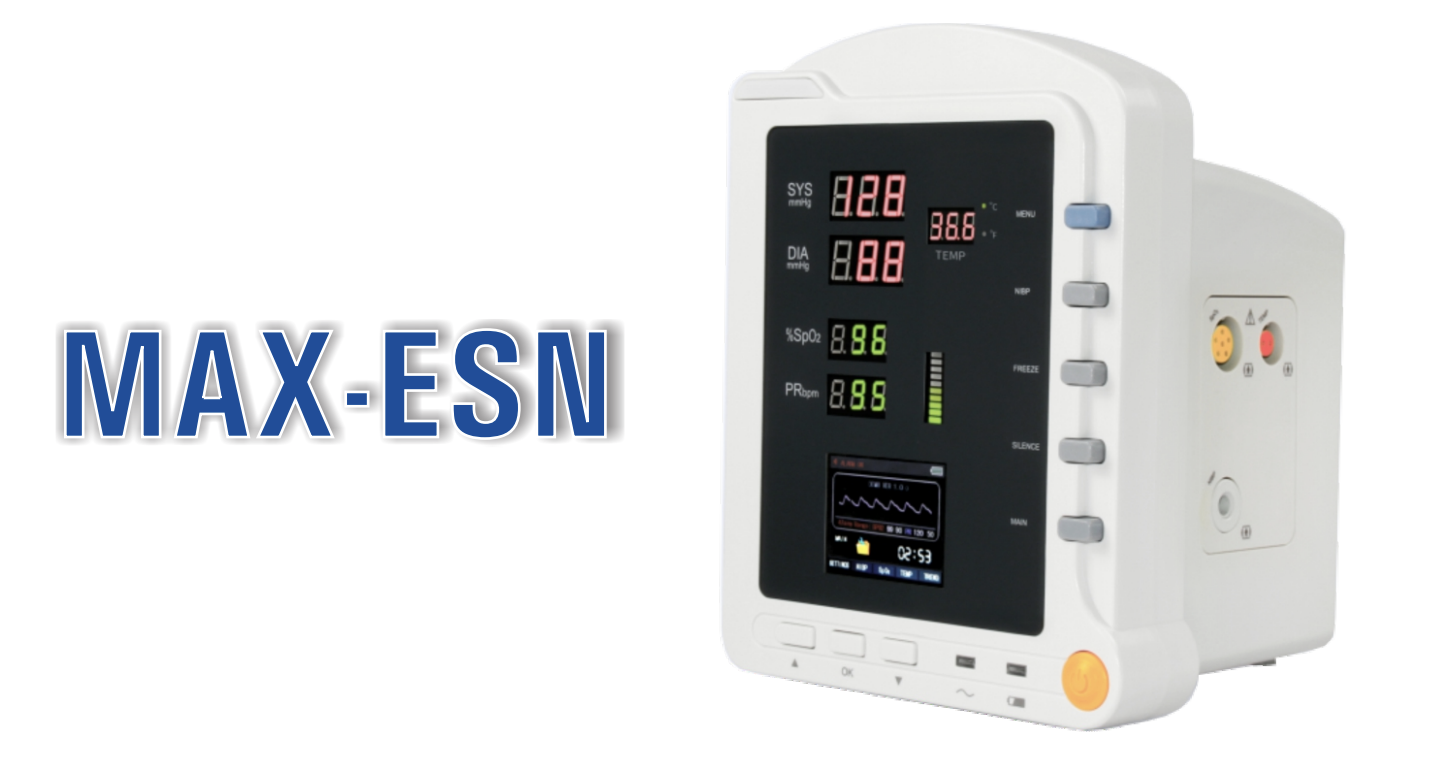

MAX-ESN
Description
The MAX-ESN Three Parameter Patient Monitor is a compact, portable, and versatile monitoring solution suitable for adults, pediatric, infant, and neonatal patients. It provides real-time monitoring of ECG, SpO₂, NIBP, pulse rate, and plethysmograph, ensuring reliable data for indoor and outdoor use. The monitor is lightweight, battery-powered, and equipped with advanced digital technology for accurate readings even under low perfusion or motion conditions.
Specifications
| Parameter | Details |
| Display | 2.8” high-brightness color LCD |
| Parameters | ECG, SpO₂, NIBP, Pulse Rate, Plethysmograph; Optional: RESP, TEMP |
| SpO₂ | 0–100%; ±1% resolution; ±5% accuracy (70–100%); motion & low-perfusion capable |
| Pulse Rate | 25–250 bpm; ±1 bpm; ±5 bpm or ±5% accuracy |
| NIBP | Manual / Auto / Continuous; 1 mmHg resolution; Max ±5 mmHg error • Adult SYS/DIA: 40–400 / 10–215 mmHg • Pediatric SYS/DIA: 40–200 / 10–150 mmHg • Neonate SYS/DIA: 40–135 / 10–100 mmHg |
| Memory | 2,000 NIBP & 78,000 SpO₂ readings; 100-hour SpO₂ trend |
| Battery | Rechargeable lithium polymer; 3-hour backup |
| Alarms | Visual & audible; upper/lower limits; date/time/trend display |
| Operating Conditions | Operating temp: 0–50°C; Storage: −10–50°C; Noise: 10 dB |
| Dimensions & Weight | 190 × 162 × 240 mm; 1.6 kg |
| Certification | CE, EN 13485 |
Features
2.8” high-brightness true color LCD screen for waveform and numerical display
Standard Parameters: ECG, SpO₂, NIBP, Pulse Rate, Plethysmograph
Optional Parameters: RESP, Temperature
Compact, lightweight, portable, and flexible design for versatile use
Ideal for both indoor and outdoor patient monitoring
Built-in rechargeable lithium-polymer battery ensures uninterrupted monitoring
Digital SpO₂ technology (Nellcor / MASIMO optional) for low-perfusion and motion-artifact scenarios
Displays date, time, alarm conditions, trends, lists, and system settings
Visual and audible alarms for upper & lower parameter limits
Independent non-volatile memory storing 2,000 NIBP and 78,000 SpO₂ readings
Quick data review, including 100-hour SpO₂ trend
CE certified
